cd2.270 Walking Floor Dryer for Wood Chips
cd2.270
The Walking Floor Dryer is an efficient and cost-effective option for drying wood chips.
For an optimum pyrolysis process, dry wood chips with an ideal water content of approx. 7% are required. In order to achieve this low residual moisture content for specific projects, the dryer is available in a modular design.
Thanks to integrated screening, reliable operation can also be achieved with low-quality wood chips. Oversize parts are ejected, fine parts that fall through the drying grid, can either be ejected or mixed back into the wood chips.
The conveying technology for connection to the wood gas CHP system by means of cross screws / steep screws is designed specifically for the project.
Dimensions and space requirements
The space required for the wood chip drying system is determined on a project-specific basis.
- Basic technical element (W x L)
2.95 x 2.45 m
- Drying and bunker elements
2.75 x 2.45 m
- Wood chips dumping height on the drying element
0.2 to 0.6 m
- Max. dumping height bunker elem.
3,0 m
Performance data
- Efficiency
1.3 kWh th / kg water
- Power requirement
0.03 kWh el / kg water

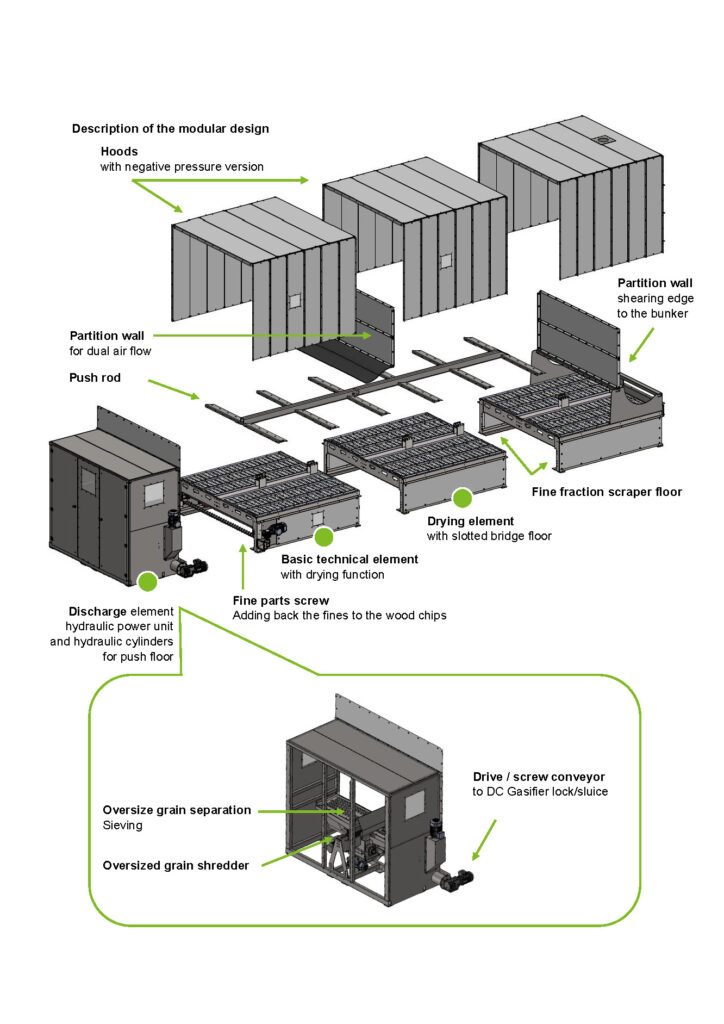

Modular design
Depending on the required drying capacity, 1 to 5 drying and/or bunker elements are mounted on the base element. Bunker elements differ from the drying elements in that their surface has no slots for the drying air. Half drying bunker elements are available to optimize the drying capacity.
- 1st drop element
- 2. basic technical element
- 3. drying element
- 4. push rod
- 5. canopy elements
The basic technical element contains the core components and the control technology. Thecontrol technology can be installed in the control cabinet of the synthesis gas system or in an external control cabinet.
- Hydraulic technology of walking floor
- Fine fraction scraper floor
- Vibrating screen for oversize grain separation (optional)
- Oversize grain shredder (optional)
- Fine part separation (optional)
- Control technology
- Fan and heater register (directly flanged to the dryer)
- Screw- and conveyor technology (project specific)
Wood chip drying plant
Scheme
- 1. wood chips screw conveyors
- 2. drying system
- 3. direct current carburetor
- 4. combined heat and power plant
- 5. fan and exhaust air intake box
- 6. air ducts
- 7. heating coil base box
